A heavy concrete base alone does not guarantee a good installation. Poor leveling, bridged isolators, rigid pipe connections or blocked service access can transmit vibration and turn routine maintenance into major dismantling work.
Engineering decisions covered
Civil, mechanical and facility teams reviewing generator support and long-term maintainability.
The foundation must carry the set while isolation and flexible interfaces allow it to operate without loading the building or connected services.
A coordinated support and clearance plan that can be checked during installation and loaded testing.
The foundation must carry the set while isolation and flexible interfaces allow it to operate without loading the building or connected services.
Decision 01
What loads must the support carry?
The design must consider operating mass, starting and stopping forces, fuel in base tanks and any maintenance lifting. Support points must match the actual skid drawing and must not be guessed from overall dimensions.

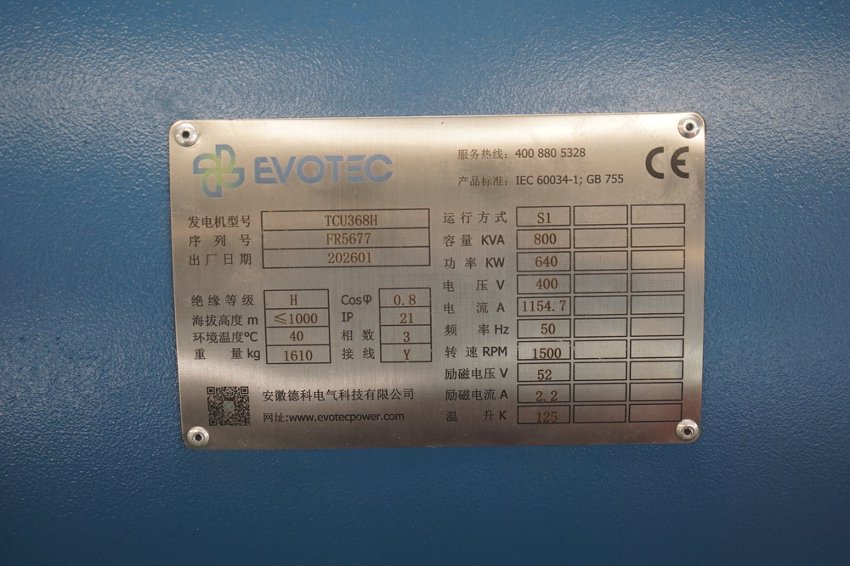

Provide operating weight, center-of-gravity information and support-point drawings.
- Check static and operating mass
- Confirm every support location
- Review floor or soil capacity
- Include maintenance and lifting loads
Decision 02
How can vibration isolation be accidentally defeated?
An isolator cannot work when exhaust, fuel, air duct or cable systems form rigid bridges across it. Those bridges return vibration to the building and may fatigue joints even when the skid itself is correctly mounted.
List every connection crossing from the moving set to the fixed building.
- Use suitable flexible exhaust sections
- Provide flexible fuel connections
- Avoid tight cables and unsupported trays
- Check ducts and guards for contact
Decision 03
Why is service clearance more than an empty perimeter?
Each task needs a different movement: opening control panels, pulling filters, removing batteries, washing the radiator or lifting major components. A nominal gap can be useless when the removal direction is blocked.
Simulate the actual maintenance movement for every regular and major service item.
- Open all service doors on the plan
- Trace filter and battery removal
- Reserve radiator-cleaning access
- Identify lifting points and overhaul route
Decision 04
How should vibration and support be accepted?
Acceptance should observe displacement, pipe strain, unusual noise and building resonance during start, loaded operation and stop. Tight anchors alone do not prove that the system is free from harmful loads.
Record observations at no load and at representative load after all services are connected.
- Inspect isolator position and compression
- Observe hoses, pipes and exhaust movement
- Check abnormal noise and contact points
- Record corrective action and retest
Do not adjust anchors, isolators or flexible connections while the set is running. Structural changes and lifting require qualified personnel and an isolated system.
Decision record
Separate Site Evidence from Engineering Confirmation
Use traceable site data and a named engineering check to support each decision; specialist calculations remain with the qualified design or service team.
| Decision Point | Prepare on Site | Confirm in Design or Service |
|---|---|---|
| What loads must the support carry? | Check static and operating massConfirm every support location | Review floor or soil capacityInclude maintenance and lifting loads |
| How can vibration isolation be accidentally defeated? | Use suitable flexible exhaust sectionsProvide flexible fuel connections | Avoid tight cables and unsupported traysCheck ducts and guards for contact |
| Why is service clearance more than an empty perimeter? | Open all service doors on the planTrace filter and battery removal | Reserve radiator-cleaning accessIdentify lifting points and overhaul route |
| How should vibration and support be accepted? | Inspect isolator position and compressionObserve hoses, pipes and exhaust movement | Check abnormal noise and contact pointsRecord corrective action and retest |
Project record
The Review Should Leave a Usable Project Record
Record the verified condition, engineering conclusion, responsible party and retest or acceptance result for each topic.
What loads must the support carry?
Provide operating weight, center-of-gravity information and support-point drawings.
How can vibration isolation be accidentally defeated?
List every connection crossing from the moving set to the fixed building.
Why is service clearance more than an empty perimeter?
Simulate the actual maintenance movement for every regular and major service item.
How should vibration and support be accepted?
Record observations at no load and at representative load after all services are connected.
