Expansion projects often define production, HVAC, pumps or servers while the power system still uses the old load assumptions. If generator, ATS, busbar, cable, fuel and cooling capacity were not reserved, new equipment can arrive only to be blocked by the final power-supply link.
First, Confirm Whether This Article Matches Your Project
Owners, procurement teams, facility managers and electrical leads buying a first set, expanding, replacing an old unit or adapting to a changed load profile.
It separates symptoms, decision criteria, site inputs and engineering boundaries for expansion planning.
A sizing basis that records operating duty, critical loads, starting sequence, environmental derating and future-expansion limits.
Capacity reserve is not simply buying a larger generator. The set, distribution, installation and operating strategy must all retain a usable expansion path.
Check 01
Turn the Expansion Plan into a Power-System Roadmap

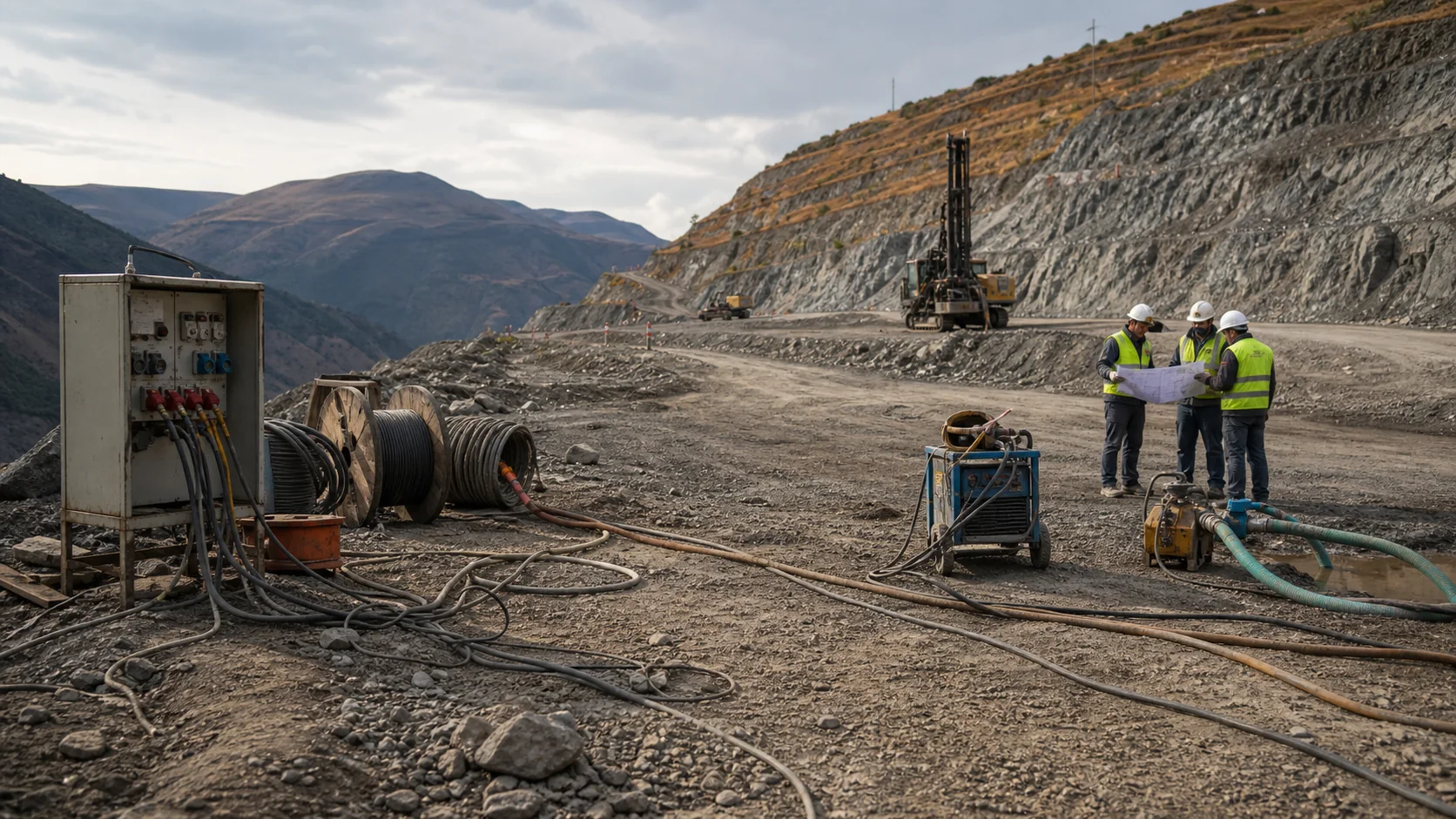

Beyond the final target load, define when each phase starts, whether construction must proceed during operation and how temporary power hands over to the permanent system.
List existing, under-construction and planned loads, with each phase’s start date and coincidence factor. Identify equipment that cannot lose power during the work and document temporary-supply and final cutover points. Without written evidence, do not assume the roadmap is complete.
- List Existing, Under-Construction and Planned Loads
- Record Phase Start Dates and Coincidence Factors
- Identify Equipment That Cannot Lose Power During Expansion
- Define Temporary Supply and Final Cutover Points
Check 02
Expansion Is More Than Adding Generator kW
Any power-chain component without reserve can limit the added capacity.
Verify ATS, breaker and busbar ratings, then cable size, route and voltage drop. Document fuel tank, ventilation, exhaust and space, plus controller and paralleling-system scalability. Without written evidence, do not assume the power chain can expand.
- Verify ATS, Breaker and Busbar Ratings
- Review Cable Size, Route and Voltage Drop
- Check Fuel Tank, Ventilation, Exhaust and Space
- Confirm Controller and Paralleling-System Scalability
Check 03
Larger Single Set, Additional Set or Paralleled Expansion?
The three strategies differ in initial cost, low-load efficiency, redundancy, maintenance windows and future scalability.
A larger single set may suit stable loads, while mixed set sizes can cover wide load variation. Paralleling supports phased growth and redundancy; retaining an old unit requires proven compatibility and reliability. Document the selected strategy rather than assuming it fits.
- A Larger Single Set Suits Relatively Stable Loads
- Mixed Set Sizes Cover Wide Load Variation
- Paralleling Supports Phased Growth and Redundancy
- Prove Compatibility and Reliability Before Retaining an Old Set
Check 04
How Should a Justified Reserve Be Defined?
Reserve should correspond to specific load changes, starting demand and future phases—not an unsupported fixed percentage.
Separate starting reserve from long-term capacity reserve and confirm derating for temperature, altitude and other conditions. Document maintenance and fault redundancy, and recalculate after load changes. Without written evidence, do not assume the reserve is justified.
- Separate Starting Reserve from Long-Term Capacity Reserve
- Confirm Derating for Temperature, Altitude and Site Conditions
- Retain Required Maintenance and Fault Redundancy
- Recalculate the Design After Load Changes
Decision record
Put Each Decision in the Project Record, Not Just a Verbal Confirmation
Selection should not begin with brand and price. Turn loads, duty and site constraints into reviewable project conditions, then compare supplier proposals on the same basis.
| Decision Point | Prepare on Site | Confirm in Design or Acceptance |
|---|---|---|
| Turn the Expansion Plan into a Power-System Roadmap | List Existing, Under-Construction and Planned LoadsRecord Phase Start Dates and Coincidence Factors | Identify Equipment That Cannot Lose Power During ExpansionDefine Temporary Supply and Final Cutover Points |
| Expansion Is More Than Adding Generator kW | Verify ATS, Breaker and Busbar RatingsReview Cable Size, Route and Voltage Drop | Check Fuel Tank, Ventilation, Exhaust and SpaceConfirm Controller and Paralleling-System Scalability |
| Larger Single Set, Additional Set or Paralleled Expansion? | A Larger Single Set Suits Relatively Stable LoadsMixed Set Sizes Cover Wide Load Variation | Paralleling Supports Phased Growth and RedundancyProve Compatibility and Reliability Before Retaining an Old Set |
| How Should a Justified Reserve Be Defined? | Separate Starting Reserve from Long-Term Capacity ReserveConfirm Derating for Temperature, Altitude and Site Conditions | Retain Required Maintenance and Fault RedundancyRecalculate the Design After Load Changes |
Common Mistakes
These Shortcuts Leave the Risk Until After the Outage
Simply Adding Equipment Nameplate Ratings
Nameplate ratings do not show motor starting demand, coincident operation or recovery order. Capacity may look sufficient on paper yet fail to start the site loads.
Replacing Engineering Calculations with a Fixed Percentage
Reserve must separately address starting demand, environmental derating, future expansion and redundancy. One blanket percentage cannot define those boundaries.
Comparing Only the Generator-Set Price
A low purchase price is not a low total cost when fuel, distribution, installation, spares, maintenance and outage losses are excluded.
Handover Check
At Minimum, the Project Should Retain These Deliverables
End customers do not need to perform every calculation, but they should receive clear documents and know what data supports each conclusion.
Load Schedule and Starting Matrix
Record each load’s power, voltage, power factor, starting method, coincidence factor and recovery sequence.
Capacity and Rating-Basis Statement
State prime or standby duty, kW and kVA basis, environmental correction and capacity justification.
Expansion and Redundancy Limits
State whether future loads, paralleling conditions, maintenance windows and N+1 requirements have been allowed for.
Like-for-Like Proposal Comparison
Compare equipment, fuel, installation, maintenance, spares and service scope in one table.
